The V09 electric lock is the only extremely high-reliability lock specially designed for use on outdoor, manual or automated sliding gates.
The special spike mechanism will tolerate a thermal expansion in the dimensions of sliding gates of up to 9.6 mm. A thermal expansion of 9.6 mm is the equivalent to a change in temperature of 100? C for a gate which is 8 metres long. Also suitable for manual sliding gates (fitted with a double through cylinder).
Unlike closing systems with padlocks, chains and standard mechanical shackle locks, the V09 lock offers new, more effective levels of security. It is easy to use, has a pleasing appearance, and cannot be attacked from the outside. It is weatherproof. (Read more)

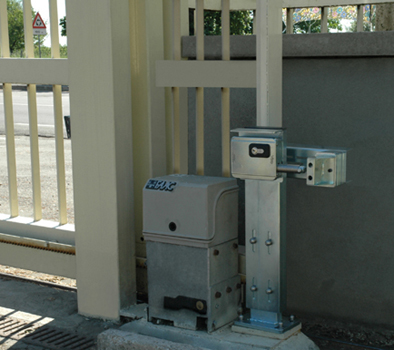

Installation: horizontal on the fixed upright of the sliding gate.
Backset: 50 mm.
Opening impulse time: controlled by an electronic board, can be interfaced with gate automation system.
Replaceable coil.
Voltage: 12V or 24V A.C. or D.C. (24V recommended).
Case: one-piece galvanized steel, with cable entry on the back (for maximum protection) or on the side (opening a prepunched hole).
Cover: galvanized steel, with automatic security block when the lock is closed.
Rotating spike dead-bolt: highly impact proof, protected by case-hardened and galvanized steel rotating rings resistant to attack, inserted in NIPOLY nickel-plated steel guides and operated by stainless steel springs.
Cylinder: version suitable for profile half cylinder with length 40 mm (30+10) with DIN or universal cam (item 1.772.9 provided).
Mechanism (of the half cylinder provided):
brass pins;
mushroom brass counterpins, pick-resistant;
phosphor bronze pin springs.
Striker: galvanized steel, easily fitted thanks to the practical lock alignment template.
Supplied with: galvanized steel striker for horizontal installation (item 7905.217), galvanized steel roof-plate and striker plate, electronic board with possibility of interfacing with gate automation systems, Torx key for cover opening/closing, galvanised steel cylinder, nylon ring nut and plug, fixing screws.
Packaging: single box.
On request:
counter display (item 7905.0601), that clearly shows how to fit the V09;
galvanized steel accessories for installation on motorized sectional doors;
versions without electronic card, for manual gates, deductible.
