The V97 electric locks are suitable for outside and inside doors and pedestrian gates and are interchangeable with the most common electric locks already installed, often maintaining the old striker. The characteristics and finish make them ideal for metal doors and gates, even in surroundings subject to considerable temperature ranges.
Installation: horizontal.

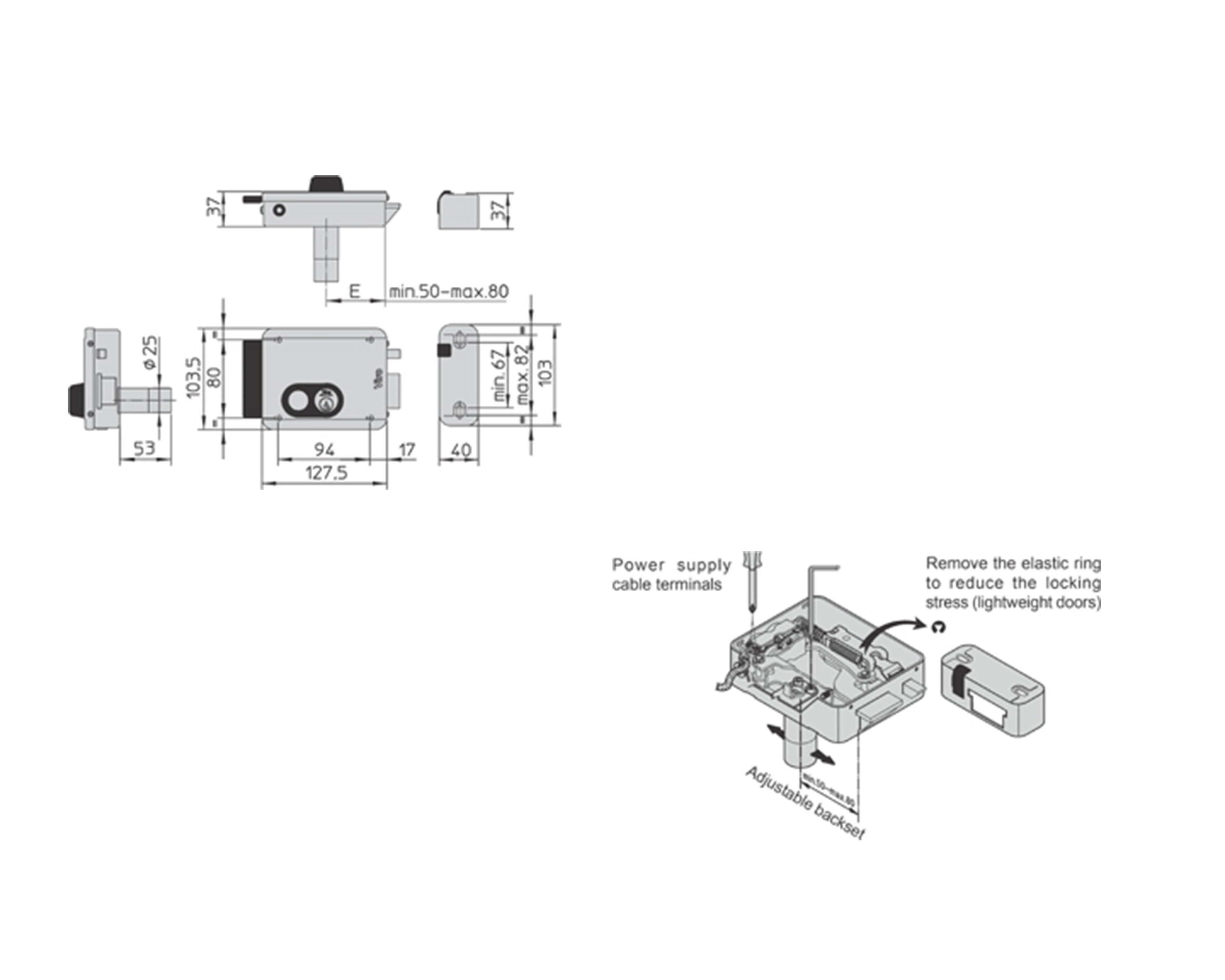

Backset: adjustable from 50 to 80 mm, by means of a simple operation with the Allen key supplied.
Double replaceable coil: which distributes the load uniformly and ensures a long working life.
Voltage: standard 12V AC (on request 12V DC; 24V AC or DC).
Case: one-piece galvanized steel.
Cover: galvanized steel.
Handle: nylon, and nylon cylinder ring nut.
Latch: solid brass, self-locking with the device locked.
Ejector: nickel-plated steel, separate from the latch to ensure the correct working of the lock even if there is vertical adjustment between the lock and the striker (caused by weather changes).
Push button: brass.
Cylinders: solid brass, fixed internal, fixed external.
Keys: supplied with 3 Viro profile nickel-plated brass keys.
Versions available with universal profile keys to replace the most common electric locks already installed without the need to withdraw keys in use. (Cylinders can be re-keyed with keying kit).
Mechanism:
if the key is turned from the inside, it is possible to:
block or activate the button function;
block or activate the “dogging device” function (possibility to keep the lock always open, if required);
brass pins;
mushroom brass counterpins, pick-resistant;
phosphor bronze pin springs.
Striker: steel, adjustable height to compensate for any vertical adjustment between the lock and the striker. Self-lubricating nylon support in contact with the ejector.
Supplied with: galvanized and painted steel striker, oval brass escutcheon, Allen key for backset adjustment and fixing screws.
Packaging: single box.
On request:
galvanized steel roof-plate (item 8992.0600).
available anthracite metallic painted versions, add the required color code .469 to the item code.
